Feature

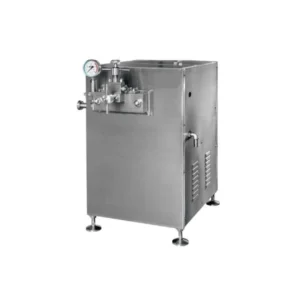

A high-pressure homogenizer is a type of ultra-fine grinding and emulsification equipment that grinds oil particles and droplets to very small sizes (diameter 0.1-2 micrometers, average ≤ 1 micrometer) through a combination of high-speed impact, cutting, expansion, blasting, shearing, and other processes. At the same time, it produces a stable emulsion. It is widely used in the food, dairy, beverage, pharmaceutical, chemical, and biotechnology industries.
| Model | Pressure (Mpa) | Inlet diameter | Homogenizer diameter | Outlet (mm) | Motor power in kW | Size (mm) | Weight (kg) |
| GJB-1-25 |
MAX. 25 (250 Bar) |
25 mm | 15 mm | ZG ½” | 7.5 | 1050x680x1110 | 600 |
| GJB-2-25 | 40 mm | 15 | 1150x930x1270 | 1000 | |||
| GJB-3-25 | 50 mm | 25 mm | ZG ¾” | 20 | 1250x1000x1350 | 1300 | |
| GJB-4-25 | 23 | 1300x1160x1500 | 1400 | ||||
| GJB-5-25 | 25 | 1400x1250x1600 | 1500 | ||||
| GJB-1-40 | 40 | 25 mm | 15 mm | ZG ½” | 15 | 1050x680x1110 | 1100 |
| GJB-2-40 | 40 mm | 22 | 1150x820x1180 | 1400 | |||
| GJB-3-40 | 50 mm | 25 mm | ZG ¾” | 30 | 1250x1150x1500 | 1700 |
